Assignment of the analogue inputs

Analogue values can be displayed in the overview screen.

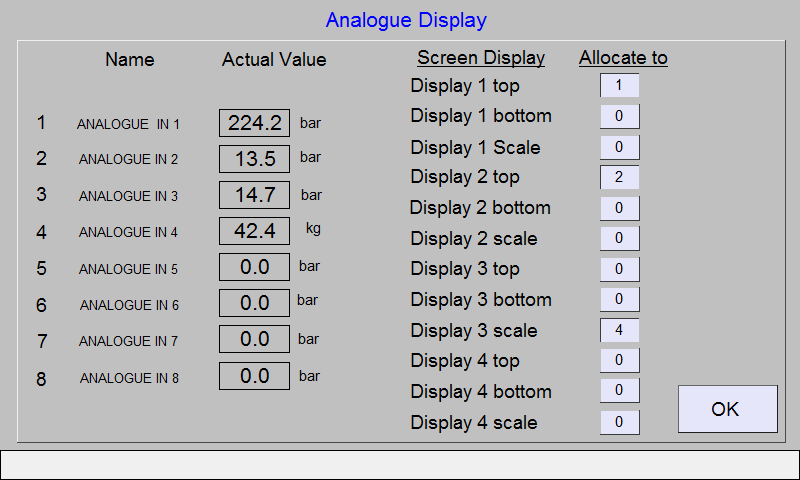

To do this, select "Analogue Display" in the configuration menu.

To assign these values to the display, press the "0" key in the required display enough times for the number matches the required analogue value.

"Display scale" automatically adds a cylinder scale symbol in the overview screen if an analogue value is assigned to it. For this reason, this value should also come from a scale.

If an assignment is set to 0, the corresponding range in the overview screen remains empty.

Pressing "OK" will take you back to the configuration menu.

Pressing "Overview Screen" in the configuration menu to view the assigned displays.
