System configuration

Press "System Configuration" to configure the system.

Three different system configurations are available:

• 2 systems with automatic changeover
• 1 Automatic changeover (valves 1 and 2) and 2 independent valves (valves 3 and 4)
• 4 independent valves

To change the system configurations, press the displayed system configuration. This allows you to scroll through the three options.

The switching logic can be set for each system with an automatic changeover. The figure below shows that both valves are open simultaneously when switched for 2 seconds. The time can be set by pressing the time displayed. The keyboard can be used to set a value of 0 to 10 seconds.

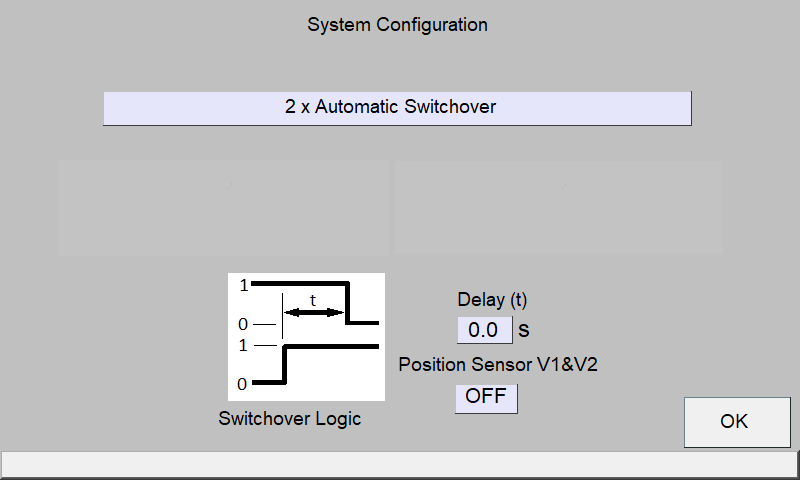

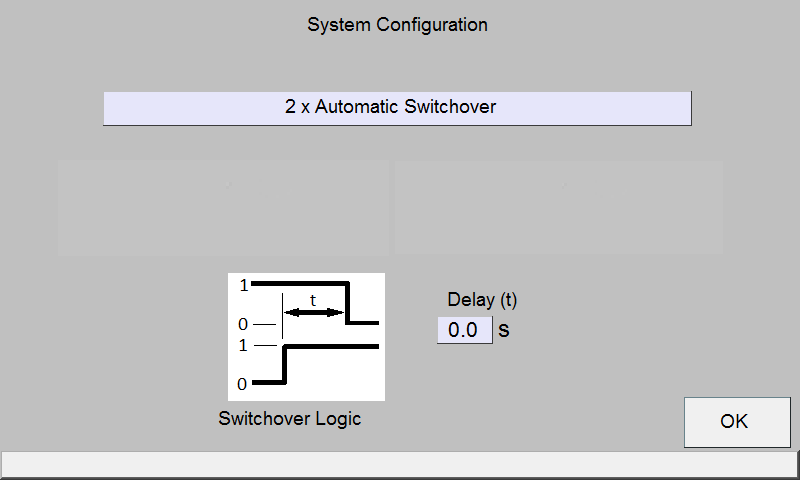

Overlap time (both sides open for 2 seconds):

to change the logic of the changeover overlap, press the logic icon.

This switches between the two available overlap options (both valves open / both valves closed).

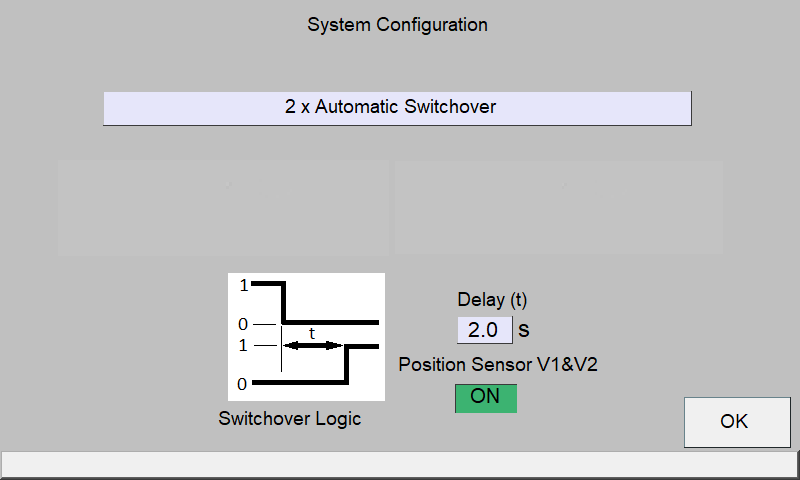

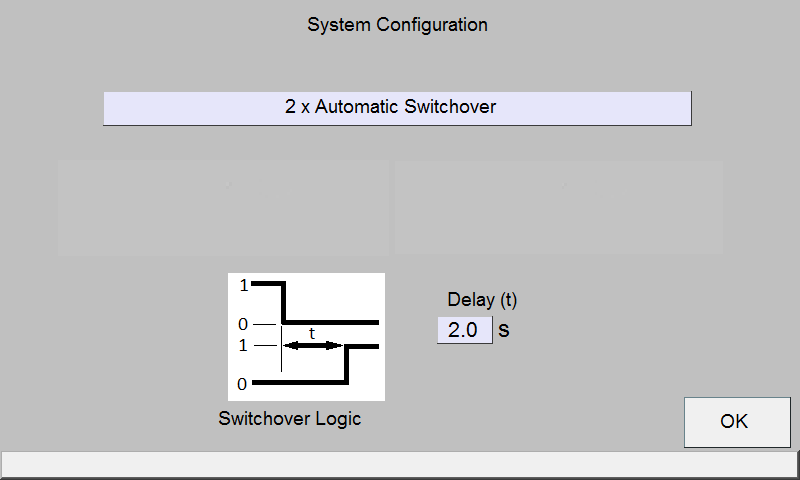

Overlap time (both sides closed for 2 seconds):

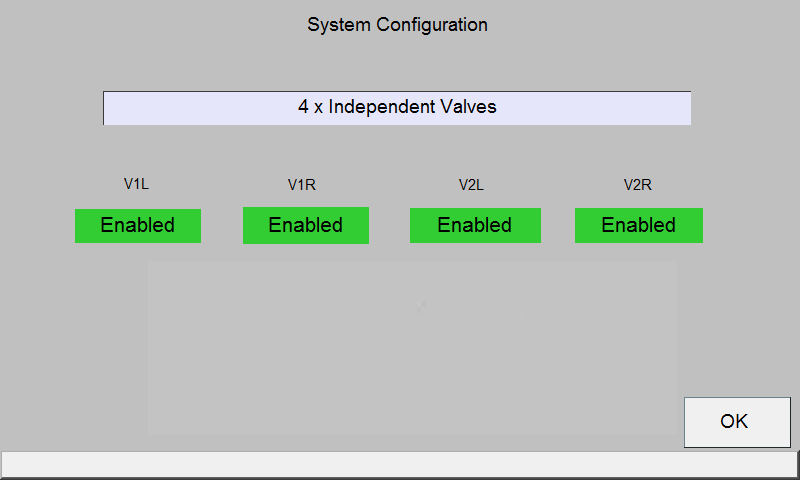

if individual valves are enabled, they can be disabled by pressing "Enabled". They are then hidden in the default overview.
