Relay outputs

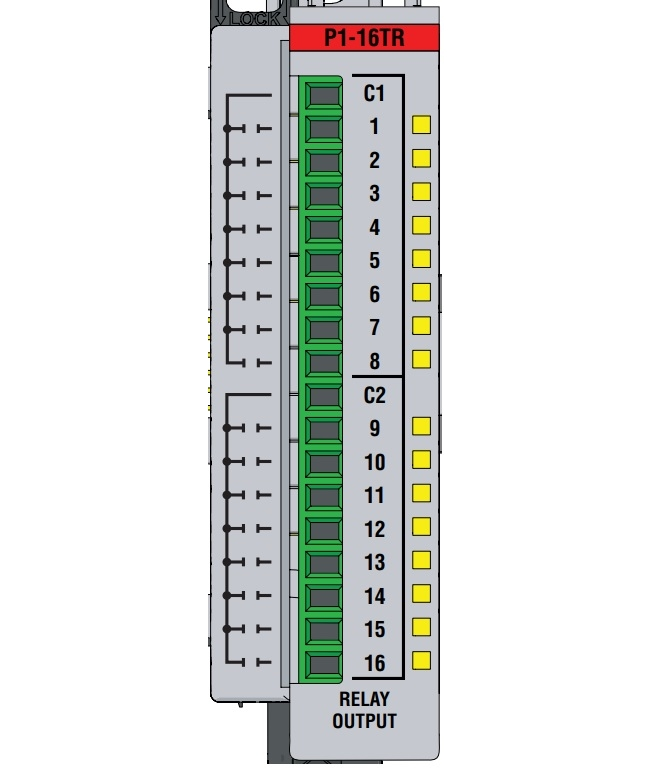

The connections for the relay outputs are connected directly to the output module P1-16TR.

C1 and relay outputs 1 to 8 are used by the controller and must not be otherwise assigned. C1 is disconnected from the network as soon as an emergency stop or remote shutdown signal is active.

The wiring of terminals C2 and the associated relay outputs 9 to 16 are provided for the following functions:

• C2: 24V power supply for relay outputs 9 to 16
• 9: free
• 10: External horn (NO)
• 11: Emergency shutdown (NC)
• 12: Warning signal (NC)
• 13: Status valve 1 (NO)
• 14: Status valve 2 (NO)
• 15: Status valve 3 (NO)
• 16: Status valve 4 (NO)
