Digital inputs

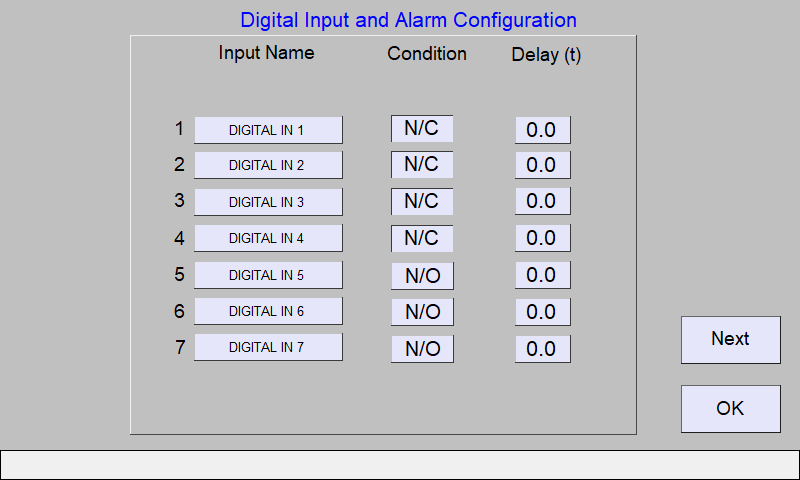

Press the name of a digital input to change it.

The status (normally open NO or normally closed NC), as well as the desired delay can be set.

Pressing " Next" will take you to the digital alarm configuration.

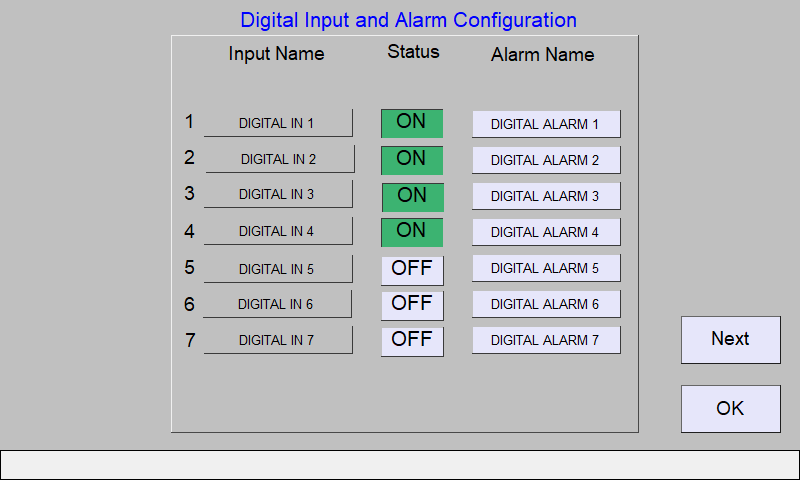

The digital inputs that are to trigger an alarm must be switched from OFF to ON. The alarm designations displayed when activated can then be assigned.

Pressing "Next" will then open the list of alarm names. You can assign different alarm actions to these alarm names.

Press "No action" to scroll to the required alarm action.

These are the possible settings for alarm actions: see analogue inputs

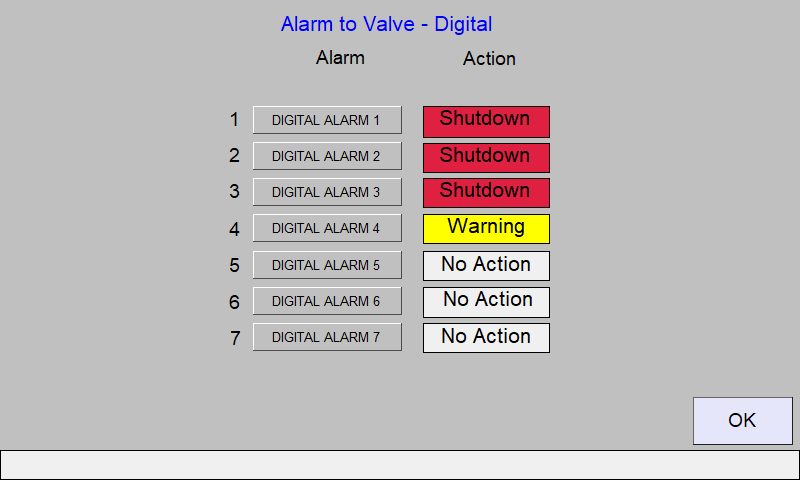

The settings of the first 3 digital inputs have been configured on the following screen so that the valve is closed in an alarm situation.

For the shut-off of the valve, the Shutdown action must be selected.

Alarm input 4 is purely a warning alarm.

Pressing OK will take you back to the configuration menu.
