Configuration

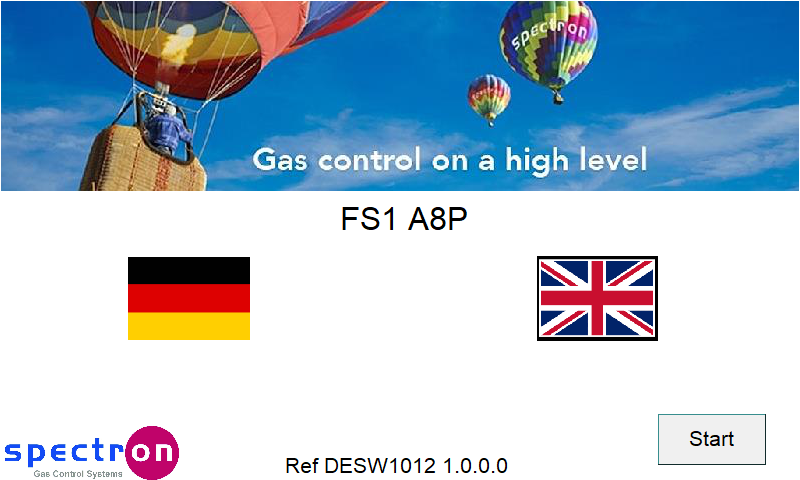

On power up, the following screen will be displayed:

Pressing the flag sets the system language. If necessary, other language libraries can be added.

All system on-screen instructions and alarm messages are displayed in the corresponding language.

Press "Start" to display the system overview.

When the system is first installed, the default values are loaded into all system variables.

After the system has been adapted to the user's requirements, these values are stored in battery-buffered memories.

When the device is switched on again, it is restarted with the custom user settings.

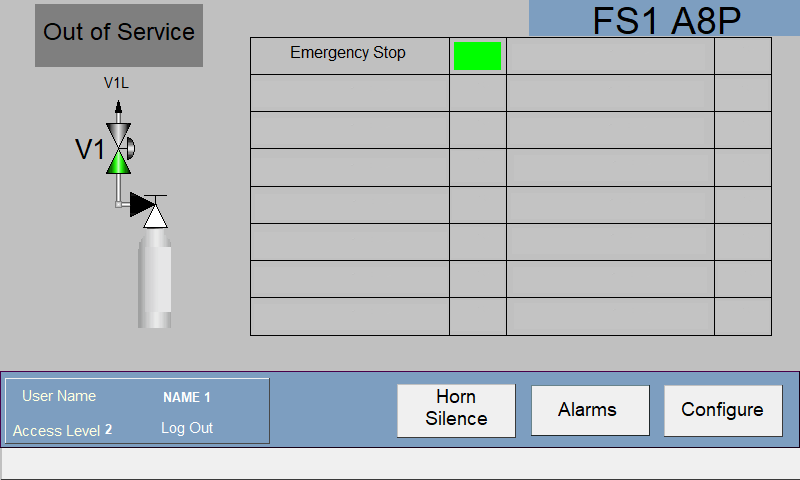

Overview Screen when first switched on without adaptation to customer requirements:

To configure the system, first press "Log in".

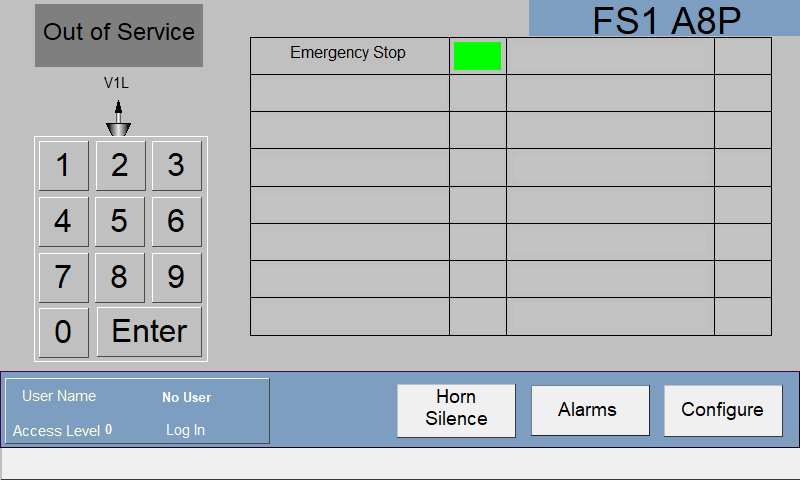

After that, the keyboard for entering the password is displayed.

The factory-set password is 1111. This gives you level 2 system access rights. In the "User management" menu you can change the user and password settings.

If a valid password has been entered, the login window displays the username and access level for that password. Pressing "Log out" logs out the user and removes the associated system access rights. 15 minutes after logging in, the user will be logged out automatically.

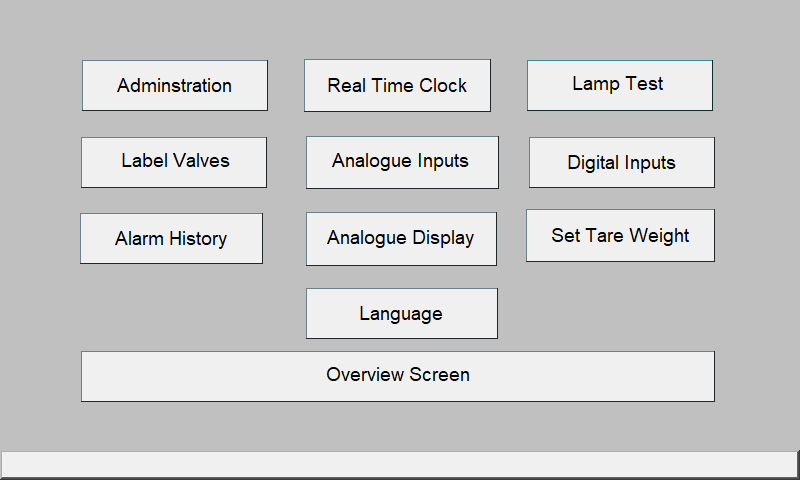

Press "Configure" to display the configuration menu.
