Analogue inputs

Analogue inputs and safety clip
Analogue inputs and safety clip

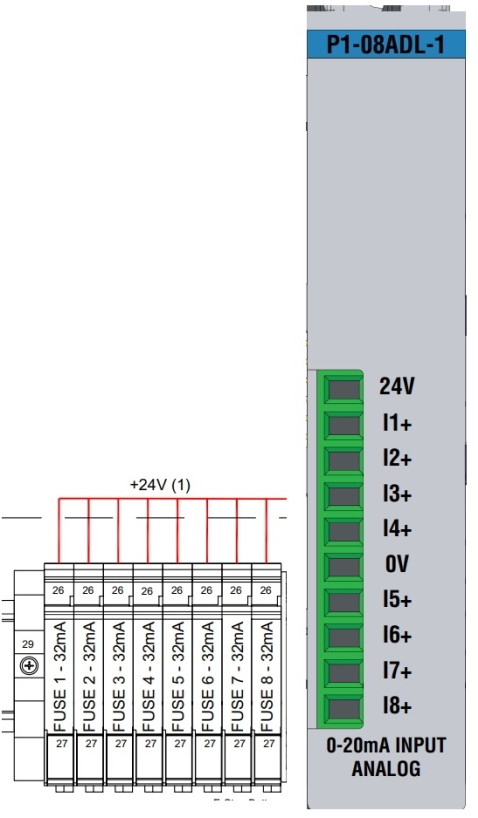

The connections for the analogue inputs are connected directly to the module P1-08ADL-1. The negative terminal of each analogue signal generator is connected to one of the I+-terminals of the module. The positive terminal of the signal transmitter is connected to one of the 8 available 24V fuse terminals. Each terminal is secured with a 32mA glass fuse (20 x 5 mm).

All sensors must be disposed of professionally as hazardous waste. This cable (max. diameter 6 mm) is passed through one of the cable glands on the base of the unit and connected according to the electrical connection diagrams.
