Analogue inputs

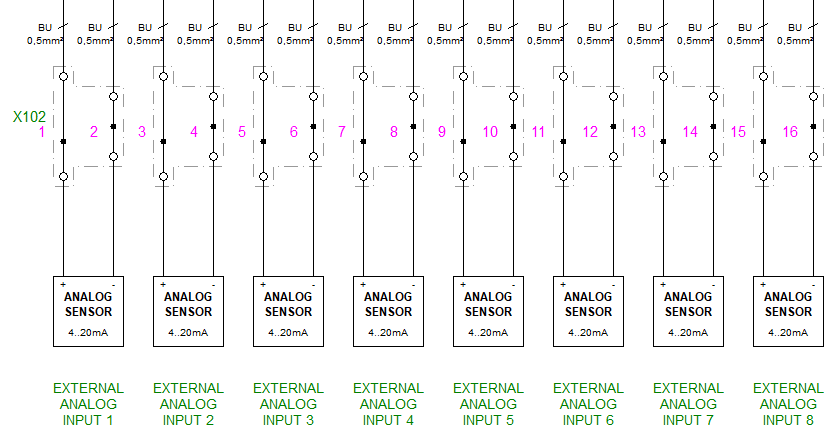

The connections for the analogue inputs are connected on terminal block X102. The negative terminal of each analogue signal transmitter is connected to one of the upper terminals. The positive terminal of the signal transmitter is connected to one of the lower terminals. Each terminal is secured with a 32mA glass fuse (20 x 5 mm).

All sensors must be disposed of professionally as hazardous waste. This cable (diameter min. 3.5 to max. 7 mm) is passed through one of the cable glands on the base of the unit and connected according to the electrical connection diagrams.
