Emergency shut-off

On the following screen, analogue input 1 has triggered an alarm because the set cylinder pressure has not reached the setpoint value.

As a result, the gas supply system has been interrupted.

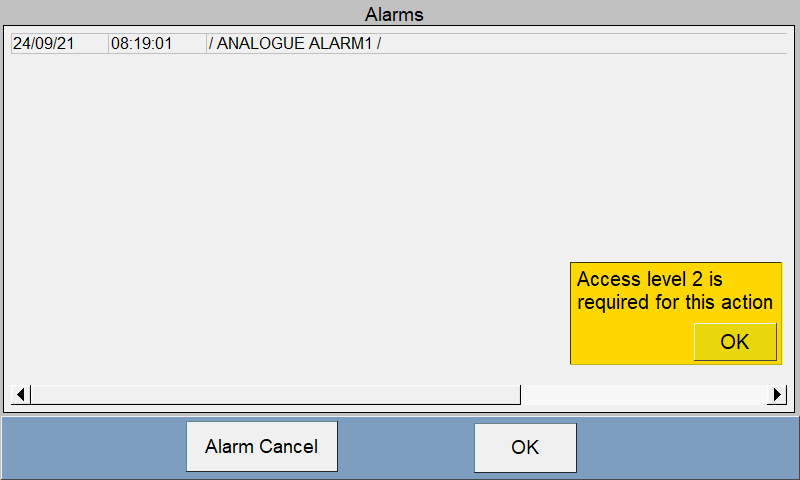

When an alarm is triggered, the date and time as well as the name of the alarm are recorded. The entries of the resolved alarms must be cancelled to be able to resume operation. They can only be cancelled if access is enabled with a level 1 or 2 password.

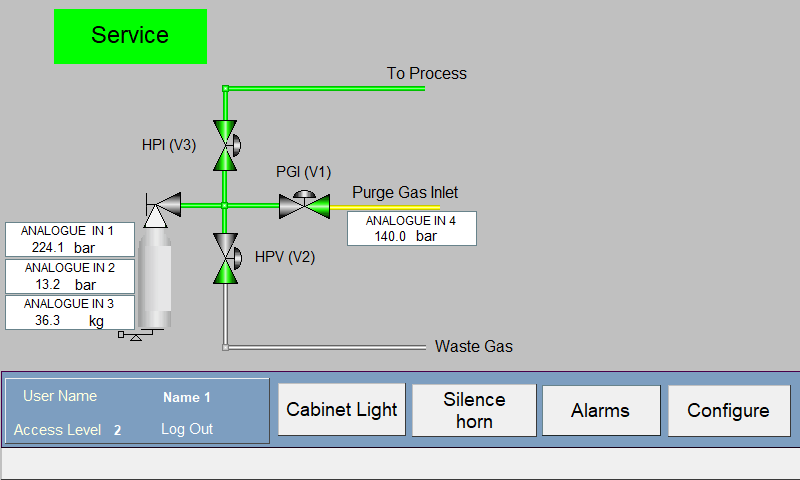

After the error has been rectified and the alarm has been cleared, the system can be re-commissioned.

All alarms are stored in the alarm history and can be retrieved via the configuration menu. Each alarm is automatically cleared from the history after 3 months.
