Installation

Step 1:

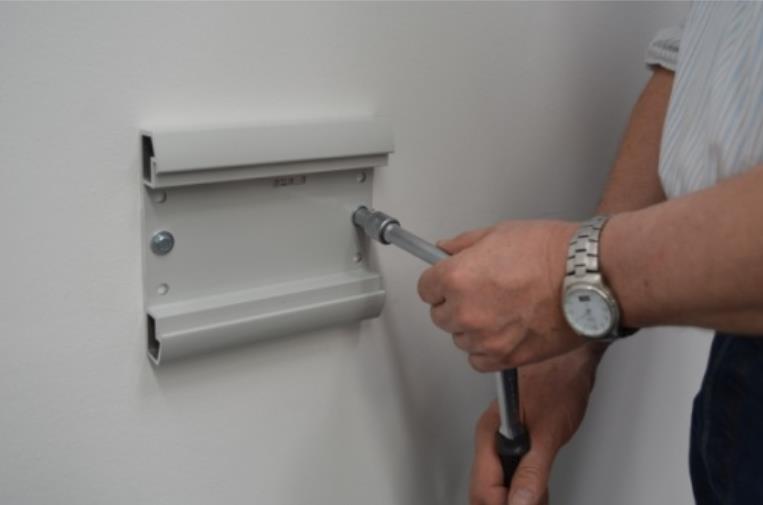

Attach the basic profile to the wall using suitable screws and dowels. The vertical distance between the centre of the basic profile and the central axis of the cylinder valve connection thread is approx. 220 mm.

Note the sticker "Top – Oben", which is attached to the inside of the basic profile and shows the correct mounting direction for the plate.

Step 2:

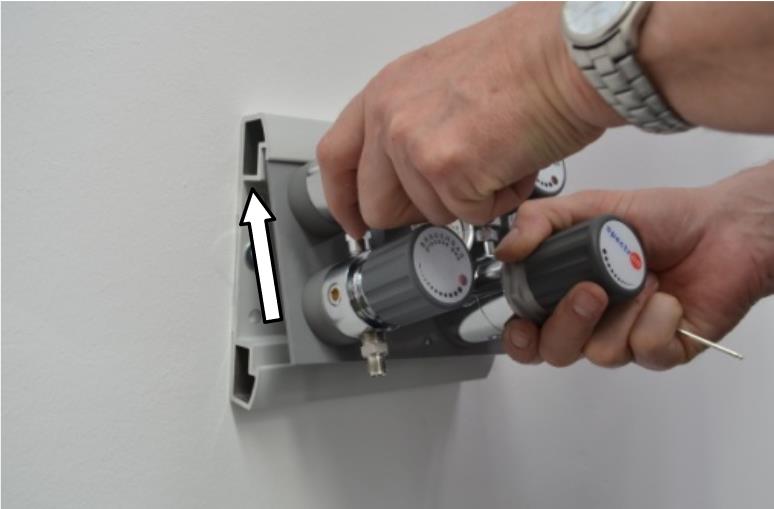

Now slide the plate with the attached fittings into the upper groove from below

Step 3:

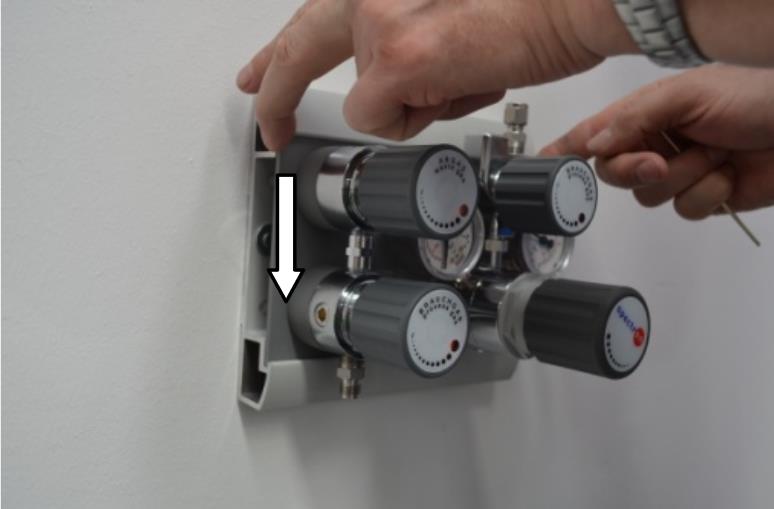

Now press the fitting plate against the basic profile and carefully slide it into the lower groove

Step 4:

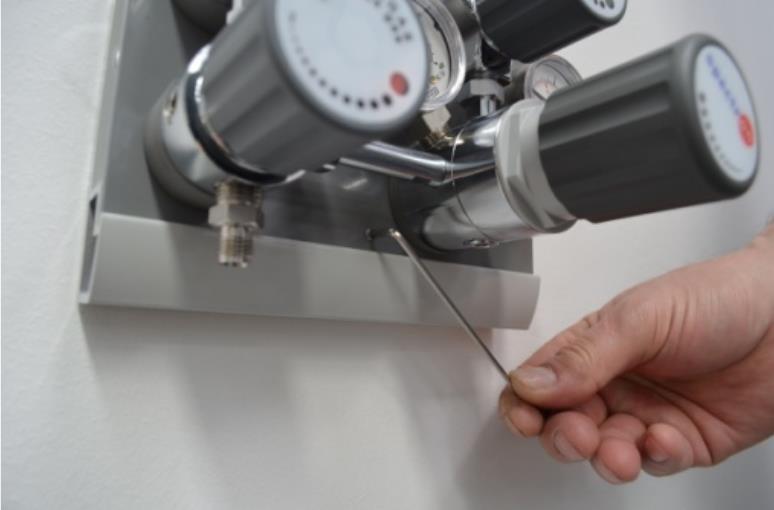

Secure the fitting plate in position by tightening the grub screw.

Step 5:

Insert the plastic side sections into the basic profile.

Step 6:

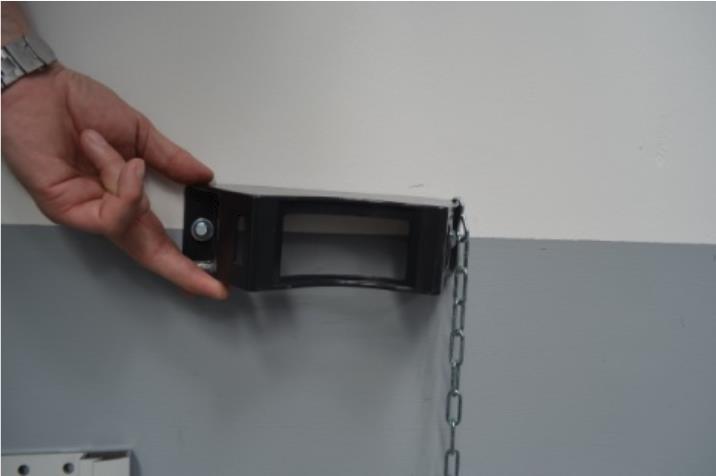

Now attach the cylinder bracket to the wall at approximately 2/3 of the cylinder height and in centred position beneath the process gas valves.

Step 7:

Where toxic or combustible gases are used, it must be ensured that purge and venting gases are routed off safely.

For example, the corresponding lines can be connected to the waste gas valve of the pressure control panel and the relief valve of the pressure regulator via compression fittings.

The following applies to the Spectron compression fittings provided:

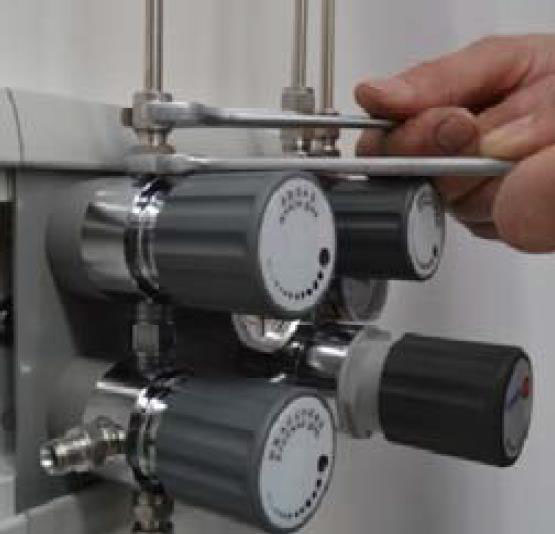

Insert pipes up to the end stop into the threaded fittings and tighten union nut by 1 ¼ turns.
